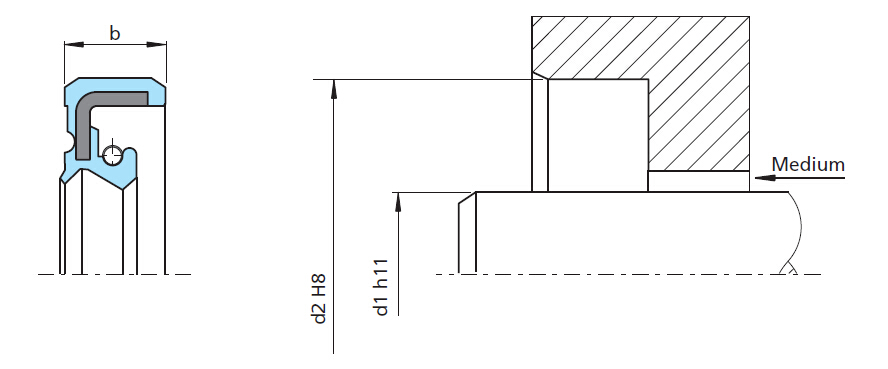

TC雙唇骨架油封-TRQ Radial oil seal
Technical data
Pressure: up to 1 MPa
Temperature: -40°C to +200°C
(depending on material)
Speed: up to 5 m/s
(depending on pressure and material)
Media: mineral and synthetic lubricants
(CLP, HLP, APGL etc.)
Advantages
- Good static sealing
- Compensation of different thermal expansion
- Reduced risk of fretting corrosion
- Up to 1 MPa pressure at low peripheral speed
- Effective protection against air side contaminants
- No need of back-up ring.
Application examples
- Transmission systems (e.g. gearboxes)
- Pumps
- Hydraulic motors
- Machinery industry
Standard material
NBR (75 Shore A)
FKM (75 Shore A)
